Amlogic S905X5M vs S905X4: Full Performance & Features Comparison

Source:tv-boxes.cn Release on: 2024-11-18-13-55-21

The Amlogic S905X5M is a new-generation system-on-a-chip (SoC) widely used in high-performance Android TV boxes, 4K/8K media players, and smart streaming devices. As an upgraded solution for home entertainment and commercial IPTV products, this chip brings stronger performance, better energy efficiency, and more comprehensive multimedia support to meet the fast-growing demands of global streaming markets.

Built for stable and smooth media playback, the Amlogic S905X5M integrates a high-performance CPU, efficient graphics processing unit, and advanced video and audio decoding technology. It supports mainstream video formats, high-resolution output, and low-latency system operation, making it the preferred chip for many professional Amlogic S905X5 IPTV boxes and smart TV devices. Actual performance may vary by device design, cooling system, and software optimization.

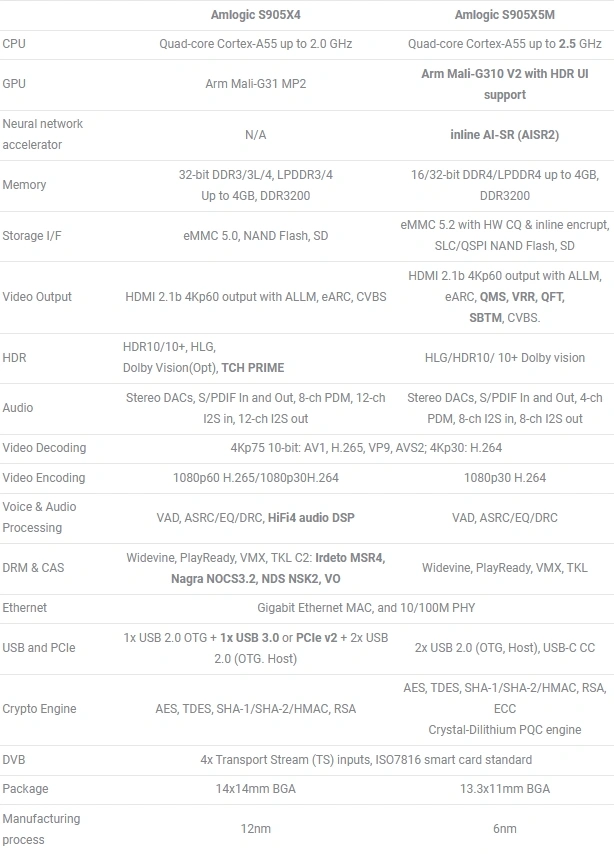

In today’s fast-evolving consumer electronics industry, chip performance directly determines the user experience of TV boxes, streaming players, and smart devices. Competition between different chip platforms has become increasingly fierce, especially between new-generation and previous-generation solutions. Today, we will compare two popular chips in the streaming device field: the Amlogic S905X5M and the earlier S905X4, to help you understand their real differences and choose the right chip for your needs.

First, let’s focus on core performance. The Amlogic S905X5M uses an upgraded architecture and optimized processing design, greatly improving CPU computing speed and GPU graphics rendering ability. Whether you are running large applications, playing high-definition video resources, or multitasking at the same time, this chip maintains stable and smooth performance without lagging or crashing. In comparison, the S905X4 offers acceptable performance for daily use but will feel slow and stressful when handling high-definition decoding, complex applications, or continuous heavy-load tasks.

Energy efficiency is another key advantage of the S905X5M. The chip adopts an advanced manufacturing process and intelligent power management mechanism, achieving an excellent balance between high performance and low power consumption. Even under long hours of continuous operation, it remains cool and power-saving, reducing heat generation and extending the service life of the device. Although the S905X4 has basic energy-saving features, it cannot match the S905X5M in terms of stability and power control during long-term use.

Multimedia performance is where the S905X5M truly stands out. It supports higher-definition video decoding, wider color gamut, and clearer image quality, bringing more realistic and delicate visual effects. The upgraded audio processing system also delivers richer, more layered sound, creating an immersive home theater experience. While the S905X4 can meet basic viewing needs, it lacks the advanced image enhancement and audio optimization technologies found in the S905X5M, resulting in obvious gaps in detail and overall quality.

Expandability and compatibility also play an important role in actual use. The S905X5M supports more external interfaces, higher transmission speeds, and better software adaptation, making it compatible with the latest applications, streaming platforms, and external devices. This ensures strong compatibility for Amlogic S905X5 IPTV boxes in global markets. The S905X4, as an older chip, has relatively limited expansion capabilities and may not support some new protocols or applications, causing inconvenience for users.

Future-proofing is also a major advantage of the S905X5M. As a new-generation chip, it supports long-term system updates, new technology access, and evolving user needs. With the continuous development of streaming media, high-definition video, and smart applications, the S905X5M can maintain strong compatibility and performance. In contrast, the S905X4 relies on older technology and will gradually struggle to meet future demands for higher performance and new features.

To sum up, the Amlogic S905X5M is significantly better than the S905X4 in core performance, energy efficiency, multimedia experience, expandability, compatibility, and future development potential. For users who want stable, smooth, and high-definition streaming experiences, as well as businesses and brands pursuing reliable chip solutions, the S905X5M is undoubtedly the best choice.

The Amlogic S905X5M also adds some special features:

QMS (Quick Media Switching): The source device can immediately switch the resolution or frame rate of its content without showing any interruption. For example, when switching from 60Hz to 24Hz for viewing;

VRR (Variable Refresh Rate): Synchronizes the source and display with a constantly changing refresh rate, up to frame-by-frame, to reduce or eliminate interaction delay, stuttering or tearing;

QFT (Quick Frame Transport): Even if the source does not increase its frame rate, each video is transmitted from the source faster, which reduces the delay in games and real-time interactive interfaces;

SBTM (Source-Based Tone Mapping): Enables the source to send video signals and fully utilize the HDR function of its specific display by adjusting its output to better utilize the functions of each display.

SunnyTV will release an Android TV box based on the 905X5M at the end of 2024. This box will come in three configurations: 2G/16G, 4G/32G, and 4G/64G. If you need samples, please contact [email protected] directly.

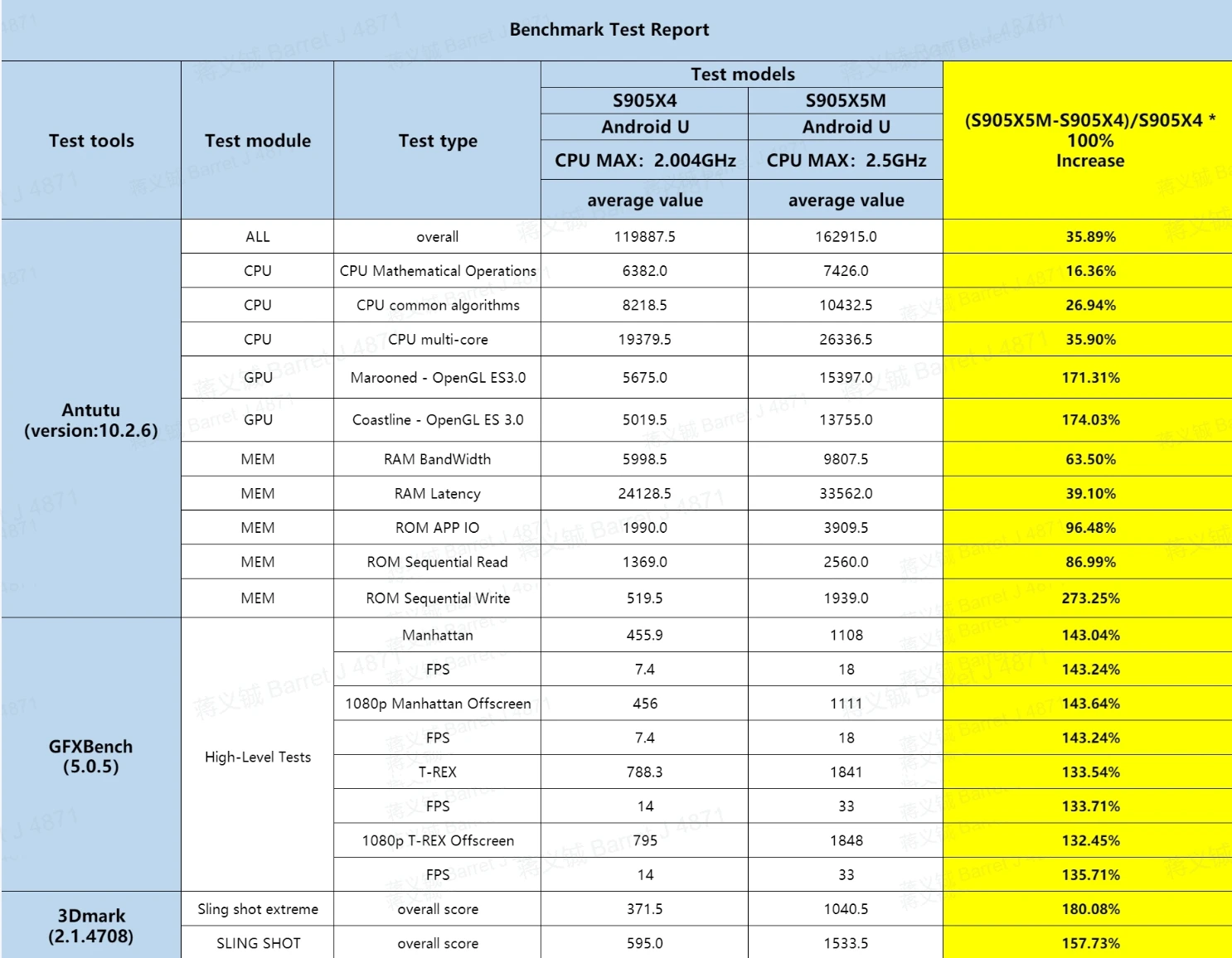

Actual performance of Amlogic S905X5M (Benchmark scores):

It can be seen that whether it is Antutu, GFXBench or 3DMark (all including 3D graphics tests), this chip has considerable improvements. Especially this Mali-G310 V2 GPU has much higher performance compared to the previous generation. The benchmark score has increased by 132.4% to 180%, and the speed has also increased by 1.36 times to 2.8 times. The CPU part has also increased by 16% to 36%. Seeing this, I believe everyone has a certain understanding of this S905X5M, and I also hope that the products equipped with this chip can meet you sooner!
